A wide variety of outer rib options are available including:
A • 1 Narrow Rib (center)
B • Narrow Ribs
C • 1 Wide Rib (center)
D • Wide Ribs
E • Micro Ribs
F • Plain
Inner rib options include:
G • Narrow Ribs
H • Wide Ribs
PAINTED WHITE SIMILAR TO RAL 9010
1 WIDE RIB | PAINTED WHITE SIMILAR TO RAL 9010
1 NARROW RIB | PAINTED LIGHT WOOD IMITATION
PLAIN | PAINTED DARK WOOD IMITATION

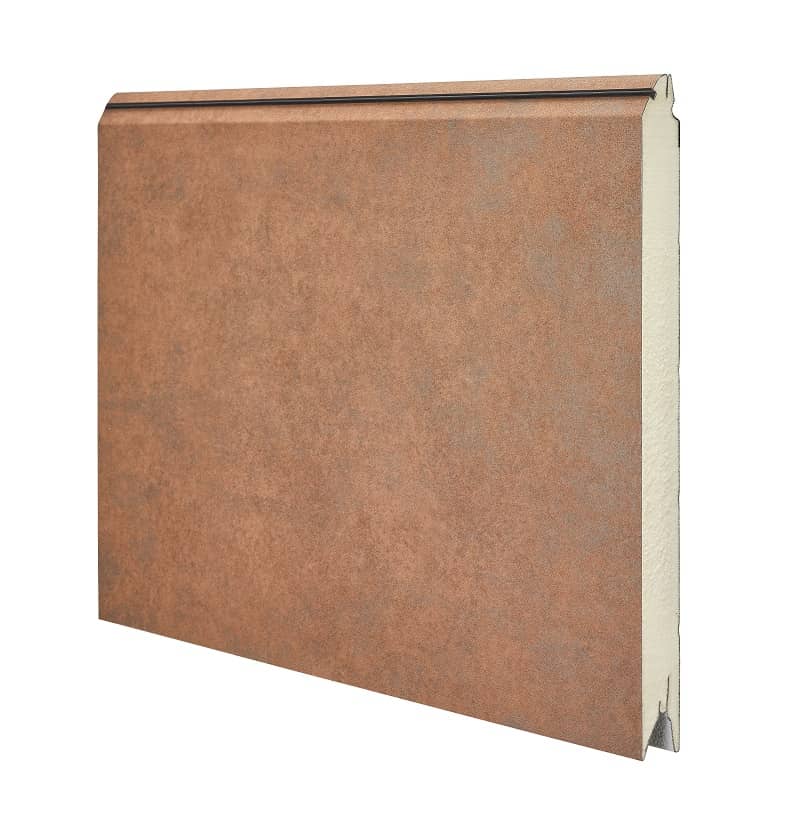

CORTEN CLARO | Painel Liso
1 NARROW RIB | PAINTED WHITE SIMILAR TO RAL 9010
NARROW-RIBBED | PAINTED WHITE SIMILAR TO RAL 9010
PAINTED WHITE SIMILAR TO RAL 9010
1 WIDE RIB | PAINTED LIGHT WOOD IMITATION
WIDE RIBBED | PAINTED LIGHT WOOD IMITATION
PLAIN | PAINTED LIGHT WOOD IMITATION
NARROW RIBBED | PAINTED LIGHT WOOD IMITATION
1 NARROW RIB | PAINTED DARK WOOD IMITATION
NARROW RIBBED | PAINTED DARK WOOD IMITATION
1 WIDE RIB | PAINTED DARK WOOD IMITATION
WIDE RIBBED | PAINTED DARK WOOD IMITATION

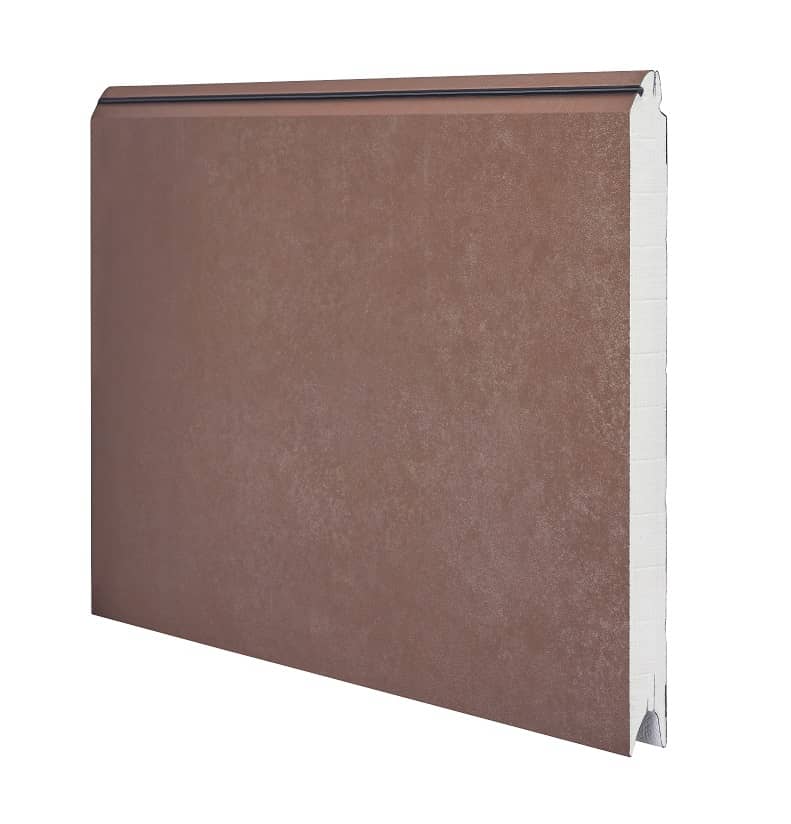

CORTEN ESCURO | Painel Liso

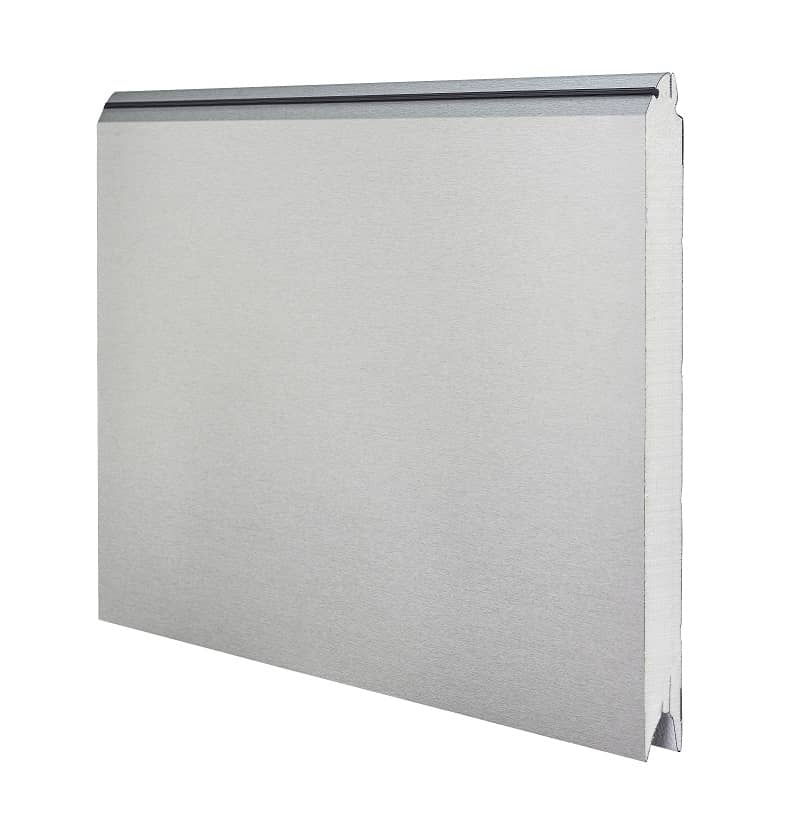

Modelo INOX | Painel Liso INOX
SILVER SAPIANO
DARK SAPIANO
PLAIN PANEL | SIMILAR TO RAL 9016
PLAIN PANEL | SIMILAR TO RAL 7016
NARROW-RIBBED PANEL | PAINTED LIGHT WOOD IMITATION
NARROW-RIBBED PANEL | SIMILAR TO RAL 6005
NARROW-RIBBED PANEL | SIMILAR TO RAL 9006
1 WIDE RIB PANEL | PAINTED WHITE SIMILAR TO RAL 9010
WIDE-RIBBED PANEL | PAINTED WHITE SIMILAR TO RAL 9010
FRAME SANDWICH PANEL | PAINTED LIGHT WOOD IMITATION
NARROW-RIBBED PANEL | SIMILAR TO RAL 3000
NARROW-RIBBED PANEL | SIMILAR TO RAL 5010
NARROW-RIBBED PANEL | SIMILAR TO RAL 8014
NARROW-RIBBED PANEL | SIMILAR TO RAL 8017
NARROW-RIBBED PANEL | SIMILAR TO RAL 7011
NARROW-RIBBED PANEL | PAINTED WHITE SIMILAR TO RAL 9010
NARROW-RIBBED PANEL | SIMILAR TO RAL 1015
NARROW-RIBBED PANEL | SIMILAR TO RAL 7016
FRAME SANDWICH PANEL | PAINTED WHITE SIMILAR TO RAL 9010

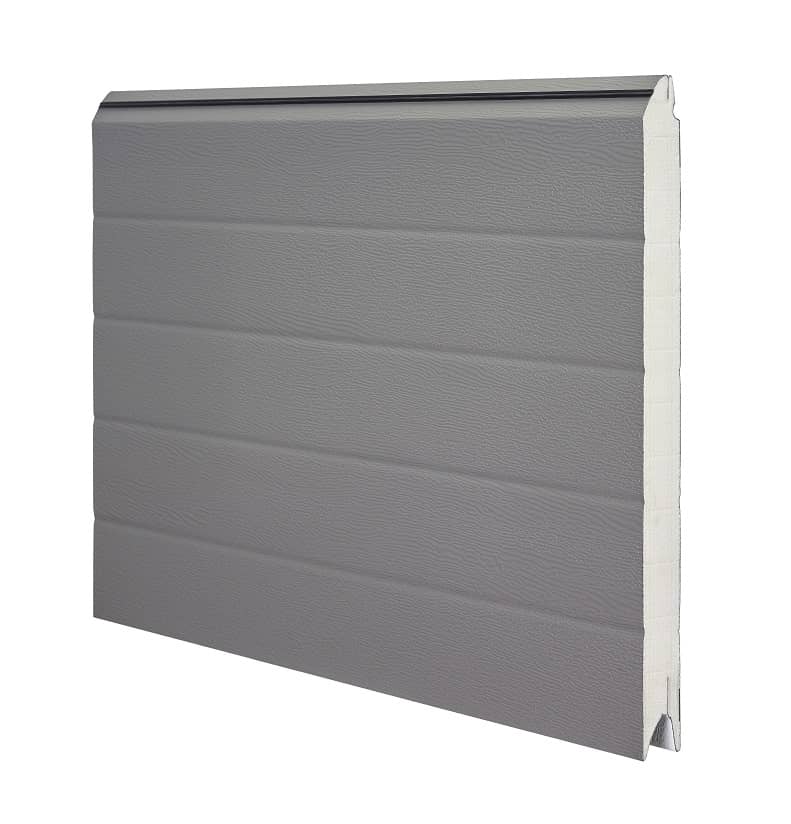

Painel frisos finos | Similar RAL 7022
NARROW-RIBBED PANEL | SIMILAR TO RAL 6009
NARROW-RIBBED PANEL | SIMILAR TO RAL 9007
NARROW-RIBBED PANEL | SIMILAR TO RAL 9030
NARROW-RIBBED PANEL | SIMILAR TO RAL 3000
WIDE-RIBBED PANEL | PAINTED WHITE SIMILAR TO RAL 9010
PLAIN PANEL
![[ SIMILAR AO RAL 9010 ]](https://tecnopan.pt/wp-content/uploads/elementor/thumbs/1_PINTURA-BRANCA_9010-q4mfpeo093h1o7kxna5gsk61a0v5xymcphrrpvtf54.png "PINTURA BRANCA")
PAINTED WHITE
[ SIMILAR TO RAL 9010 ]
CREAM
[ SIMILAR TO RAL 1015 ]
ALUMINUM
[ SIMILAR TO RAL 9030 ]
GRAY
[ SIMILAR TO RAL 9006 ]
GRAY
[ SIMILAR TO RAL 9007 ]
GRAY
[ SIMILAR TO RAL 7011 ]
GRAY
[ SIMILAR TO RAL 7016 ]
GRAY
[ SIMILAR TO RAL 7022 ]
RED
[ SIMILAR TO RAL 3000 ]
BLUE
[ SIMILAR TO RAL 5010 ]
GREEN
[ SIMILAR TO RAL 6005 ]
GREEN
[ SIMILAR TO RAL 6009 ]
BROWN
[ SIMILAR TO RAL 8014 ]
BROWN
[ SIMILAR TO RAL 8017 ]
BROWN
[ SIMILAR TO RAL 7022 ]
IMITATION
LIGHT WOOD
IMITATION
DARK WOOD
4,5 | 5,0 | 5,5 | 6,0 | 6,5 | 7,0 | 7,5
44,45 | 50,80 | 66,67 | 95,25
6,5 | 7,0 | 7,5 | 8,0 | 8,5 | 9,0| 9,5 | 10,0 | 10,5 | 11,0 | 11,5 | 12,0
66,67 | 95,25 | 152,40
1.5 | 2.0
25,40
1.5 | 2.0
44,45 | 50,80 | 66,67 | 95,25
Industrial End Cap Double 500mm or 610mm
Industrial End Cap Simple 500mm or 610mm
End Cap Simple 500mm or 610mm

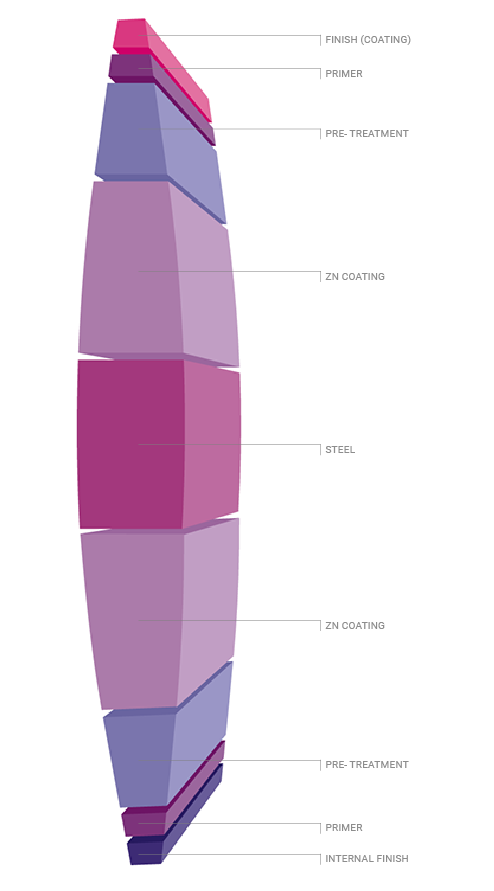

Cold rolled DX51+Z structural steel; Hot-dip galvanized – Sendzimir System; External 25µ polyester pre-coating; Internally primed with 10µ coating; Top sheet thickness: ± 0.34 mm – ± 0.42 mm – ± 0.62 mm; Bottom sheet thickness: ± 0.34 mm – ±0.42 mm.
All panels are lined internally and externally with a protective PVC film that must be removed following installation.
Apparent density: ± 45 Kg/m3
Adhesive strength: ± 0,15 MPa
Compressive strength: ± 0,13 MPa
Compressive modulus of elasticity: ± 2,68 MPa
Thermal conductivity: ± 0,020 W/mk
HEAT TRANSFER COEFFICIENT:
Panel 610 mm with seal: U= 0.76 W/m2K
Panel 500 mm with seal: U= 0.80 W/m2K
Panel 610 / 500 mm without seal: U= 0.53 W/m2K
Closed cell content: ± 94%
Stucco texture (orange peel)
Wood texture (imitation wood texture)
Raised panel
Plain
The tests for the panel certification from Tecno-Pan are being done by the company Tecnalia, according to the European standard for sandwich panels [EN 14509]
– Resistance to the sharp effort and modular according EN 14509 Annex A.3.
– Resistance and modular compression according EN 14509 Annex A.2.
– Test for perpendicular traction from face and modular EN 14509 Annex A.1.
– Stiffness capacity from the flector moment about the supports according EN 14509 Annex A.5.
– Interaction between the flector moment and the support reaction according EN 14509 Annex A.7.
– Density according EN 14509 Annex A.8.
– Thickness 40mm
– Width 500 and 610
– Finishing flat and with texture
– Two different thickness steel plates (0,4mm and 0,6mm).
Some tests aren’t done for both thicknesses, it doesn’t justify them.
